| Name | National Instruments SbRIO-9239 C Series Voltage Input Module |

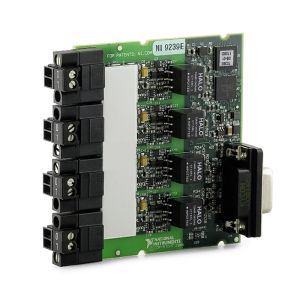

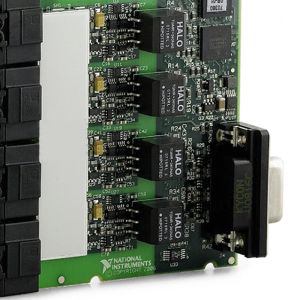

National Instruments sbRIO-9239 C Series Voltage Input Module
The sbRIO-9239 is a module designed for voltage inputs. The NI sbRIO-9239 is developed by National Instruments. The sbRIO-9239 module is designed with the part number 780875-01. The NI sbRIO-9239 Voltage Input Module is part of the C Series of modules by National Instruments. The sbRIO-9239 module is presented in a non-enclosed design.
The National Instruments sbRIO-9239 C Series Voltage Input Module is manufactured with the same features and properties as the sbRIO-9229 module. The only difference between the sbRIO-9239 and sbRIO-9229 is the analog input voltage range. The NI sbRIO-9239 has an analog input voltage range of ±10 V, while the sbRIO-9229 can be used in a ±60 V range. The sbRIO-9239 module is equipped with 4 differential analog input channels that work with a simultaneous sampling rate. The sbRIO-9239 Voltage Input Module is used with a sampling rate of 50 kS/s per channel. The analog input resolution of the NI sbRIO-9239 module is 24 bits.
The National Instruments sbRIO-9239 C Series Voltage Input Module is assembled for OEM applications. The sbRIO-9239 module is fully compatible with the NI CompactRIO platform. The NI sbRIO-9239 Voltage Input Module is fabricated with a Delta Sigma ADC. The sbRIO-9239 module is created with an internal master timebase frequency of 12.8 MHz. The NI sbRIO-9239 module has DC input coupling. The sbRIO-9239 C Series Voltage Input Module is configured with 60 VDC channel-to-channel and channel-to-earth ground isolation voltage. This Voltage Input Module also has ±100 V overvoltage protection.
Maximum differential analog input channels: 4
Conformal coating: No
Analog input voltage range: -10 V to 10 V
Sealed: No
Analog input resolution: 24 bits
Maximum sampling rate: 50 kS/s/channel
Analog input isolation: 60 VDC channel-to-channel isolation
Maximum single-ended analog input channels: 0
Front connections: Screw terminal, screw terminal, screw terminal, screw terminal
Simultaneous sampling: Yes
Supported hardware platforms: CompactRIO
